Pet Preforms

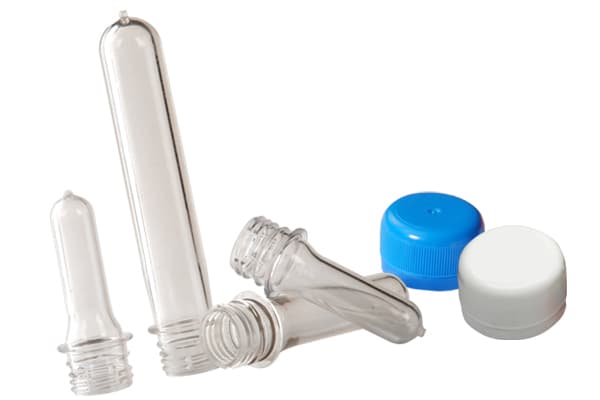

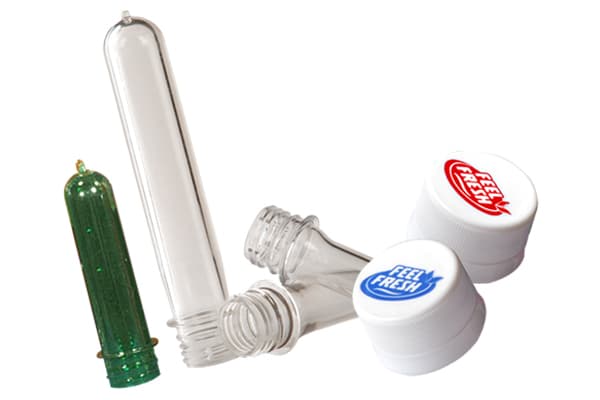

PET Preforms for Mineral Water Bottles

Item Description Neck Size Blowing Capacity Box Qty (Nos.) Gross Wt.Per Box (Kg)
17.0 gm 28 mm – PCO 200 – 500 ml 680 12.54
18.0 gm 28 mm – PCO 200 – 500 ml
19.6 gm 28 mm – PCO 200 – 500 ml
20.5 gm 28 mm – PCO 200 – 500 ml
22.0 gm 28 mm – PCO 500 – 1000 ml 680 15.26
22.5 gm 28 mm – PCO 500 – 1000 ml 600 14.51
24.0 gm 28 mm – PCO 500 – 1000 ml 550 14.46
25.0 gm 28 mm – PCO 500 – 1000 ml
26.8 gm 28 mm – PCO 750 – 1500 ml 600 16.88
28.0 gm 28 mm – PCO 750 – 1500 ml 600 16.88
32.0 gm 28 mm – PCO 750 – 1500 ml

Packing Specification

  • Corrugated 5 Ply Box Size: L=460 mm, W=360 mm, H = 370 mm, 430 Boxes per 20 Ft. container, 1008 Boxes per 40 Ft HQ container

PET Preforms for Edible Oil

Edible Oil
Item Description Neck Size Blowing Capacity
 17.0 gm, 22, 24, 26, 33, 35, 38, 44  28 mm – PCO  200 – 500 ml
 24.0 gm/26  29/21 mm CTC type  200 – 500 ml
 50 gm  38 mm – CTC  200 – 500 ml

PET Preforms for Soda Grade Bottles

Bottle Preforms – Soda Grade – CSD

Item Description Neck Size Blowing Capacity
17.0 gm 28mm-PCO 200-250 ml
22.0 gm 28mm-PCO
24.0 gm  28mm-PCO 300 ml
26.0 gm 28mm-PCO
35.0 gm 28mm-PCO
38.0 gm 28mm-PCO
44.0 gm  28mm-PCO 1000-1500 ml

Packing Specification

  • Corrugated 5 Ply Box Size: L=460 mm, W=360 mm, H = 370 mm, 430 Boxes per 20 Ft. container, 1008 Boxes per 40 Ft HQ container

PET Preforms for Warm Filled Juice Bottles

Item Description Neck Size Blowing Capacity
12.0 gm 28 mm 1881 Type Short Neck
13.8 gm 28 mm 1881 Type Short Neck
16.0 gm 28 mm 1881 Type Short Neck
17.0 gm 28 mm-PCO  200-250 ml
22.0 gm 28 mm-PCO (1810 Type)
24.0 gm 28 mm-PCO 330-400 ml
24.0 gm 28 mm 1881 Type Short Neck
26.0 gm 28 mm-PCO 500-600 ml
33.0 gm 28 mm-PCO 750-1000 ml
35.0 gm 28 mm-PCO 750-1000 ml
38.0 gm 28 mm-PCO (1810 Type)
44.0 gm 28 mm-PCO (1810 Type)
Bottle Preforms Specially for Mineral Water

  • We have been successfully supplying /using from last 10 years.
    18.7/20.5 gms

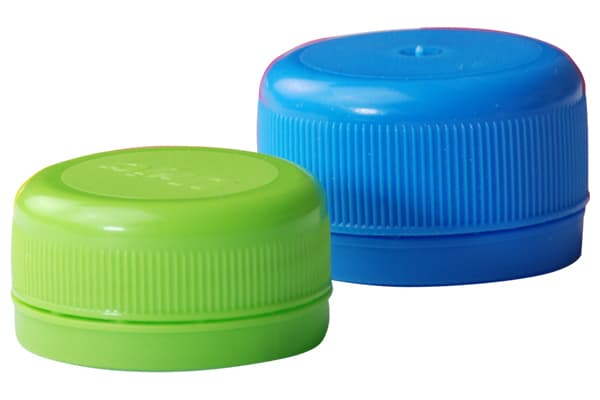

  • Available with excellent HDPE Cap/closure
 14 gm 28mm Alaska/
3 start/Multistart Neck
200-500 ml
21 gm   28mm Alaska/
3 start/Multistart Neck
750-1000 ml

Packing Specification

  • Corrugated 5 Ply Box Size: L=460 mm, W=360 mm, H = 370 mm, 430 Boxes per 20 Ft. container, 1008 Boxes per 40 Ft HQ container

HDPE Caps For Liquor Bottles

Bottle Preforms – Liquor

Packing Specification

  • Corrugated 5 Ply Box Size: L=460 mm, W=360 mm, H = 370 mm, 430 Boxes per 20 Ft. container, 1008 Boxes per 40 Ft HQ container
Item Description Neck Size Blowing Capacity
9.8 gm 25mm-ROPP neck finish 90-180 ml
10.8 gm 25mm-ROPP neck finish 90-180 ml
12.3 gm 25mm-ROPP neck finish
16.0/18.0 gm  25mm-ROPP neck finish 180-220 ml
  25mm-ROPP 90ml oval shape, 180 flat shape, 180 round shape, 375 ml flat shape
22.0 gm  28mm-ROPP neck finish 360 ml
25.0 gm  28mm-ROPP neck finish 550 ml
32.0 gm  28mm-ROPP neck finish 550-720 ml
34.0 gm  28mm-ROPP neck finish 720-1000 ml
32.0 gm  28mm-ROPP Collar Less 380-1000 ml
50.0 gm  29mm-Long Neck 750 ml
53.0 gm  30mm-Long Liquor Neck

PET Preforms for Cosmetic Bottles

Item Description Neck Size Blowing Capacity
 10.0 gm  25mm – ROPP 180 ml for liquor
 12.0 gm  25mm – ROPP 30-60 ml
 12.8 gm  25mm – ROPP 60-100 ml
 16.0 gm  25mm – ROPP 100 ml
18.0 gm 25mm – ROPP
 19.0 gm  25mm – ROPP 200 ml
22 gm, 25, 32, 34, 37 28 mm – ROPP
Ready Blown Bottles (Single Stage)
for Pharma 30 ml, 60, 100, 200
for Liquor 90 ml, 180, 375, 750 ml
25mm – ROPP
Flavoured Hair Oil
35 ml, 40, 70, 75, 80
16 mm
   25mm – ROPP 200 ml
Brut shape bottles
of ASB machine in
Amber and Clear colors
 32.0 gm 28mm – ROPP
Collar Less
500-1000 ml



Single Stage ASB Machine Two Stage
Parameter Bottle Size Bottle Size
30 ml RD 60 ml RD 100 ml RD 200 ml RD 200 ml Brut
Capacity in ml  30  ± 2 ml 60 ± 3 ml  100 ± 3.5 ml 200 ± 3 ml 200 ± 3.5 ml
Overflow capacity in ml  43± 2 ml 71± 3 ml  120 ± 3.5 ml 240 ± 3.5 ml 220+3.5 ml
Weight 7.5 ± 0.5 gm 10 ± 0.5 gm 13 ± 0.5 gm 19 ± 0.5 gm 19 ± 0.5 gm
Neck Dia in mm Ø 24.4 mm Ø 24.4 mm Ø 24.4 mm Ø 24.4 mm Ø 24.4 mm
Neck Height mm 19 mm 19 mm 19 mm 19 mm 19 mm
Shell Dia in mm 30.6 ± 1 mm 36.6  ± 1 mm 43.6  ± 1 mm 55  ± 1 mm 57.5  ± 1 mm
Shell Height in mm 57 ± 0 mm 73 ± 0 mm 88 ± 0 mm 116 ± 0 mm 131 ± 0 mm
Overall Height in mm 76 ± 1 mm 92 ± 1 mm 107 ± 1 mm 135 ± 1 mm 150 ± 1 mm
Average wall thickness in mm 0.43 mm 0.49 mm 0.47 mm 0.65 mm 0.50 mm
No.of Bottles/Tray 192 Nos 140 Nos 108 Nos 69 Nos 83 Nos
Quantity/Box 1536 Pcs 980 Pcs 648 Pcs 276 Pcs 332 Pcs

Other Preforms are also available in 28 mm PCO necks.

  • Corrugated 5 Ply Box Size: L=460 mm, W=360 mm, H = 370 mm, 430 Boxes per 20 Ft. container, 1008 Boxes per 40 Ft HQ container

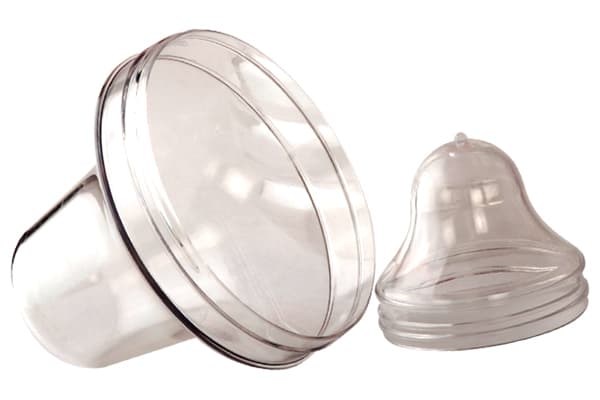

PET Preforms for Jar Bottles

Item Neck Colour Capacity Suitable for
28.00 gm 73 mm Natural 500 ml  Oil / Spices / Ghee
30.00 gm 83 mm Natural 1.00  kg Pastry / Biscuits /
Bakery Products/
Pickle / Oil /
Spices
34.00 gm 83 mm Natural 1.00  kg
35.00 gm 96 mm
38.00 gm 83 mm Natural 1.25  kg
38.00 gm 96 mm
42.00 gm 83 mm Natural 1.50  kg
44.00 gm 96 mm Natural 2.00  kg
55.00 gm 96 mm
64.00 gm 120 mm
68.00 gm 120 mm Natural
72.00 120 mm
80.00 gm, 90, 100 46 mm
